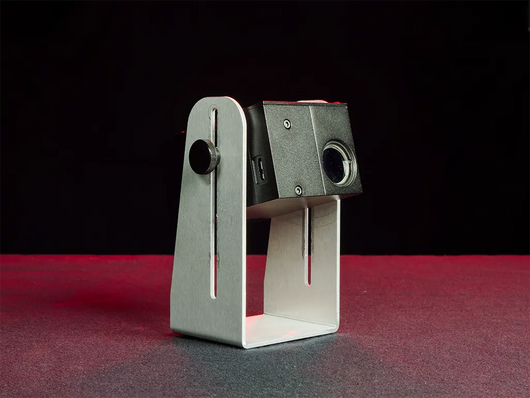

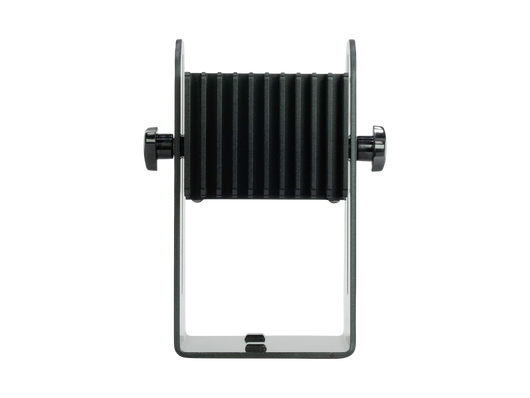

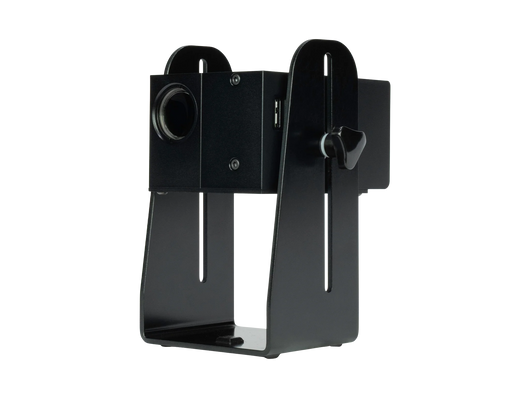

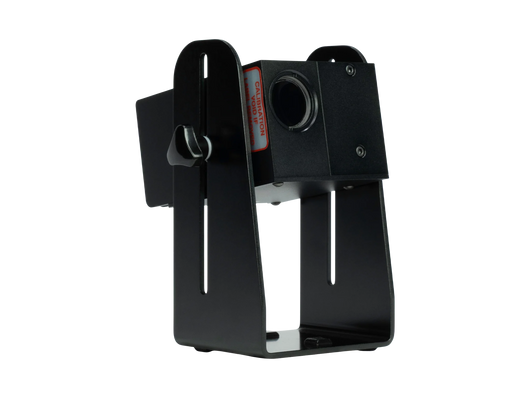

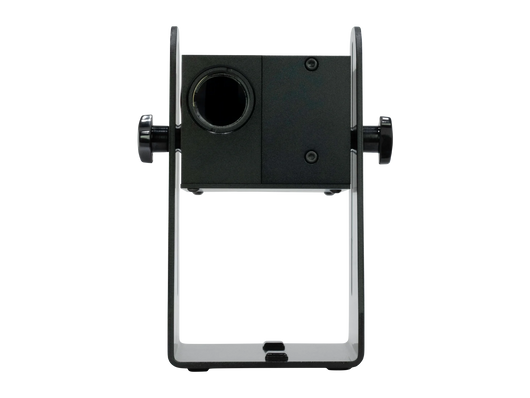

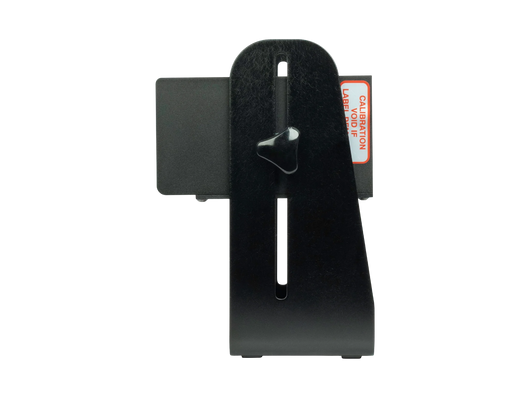

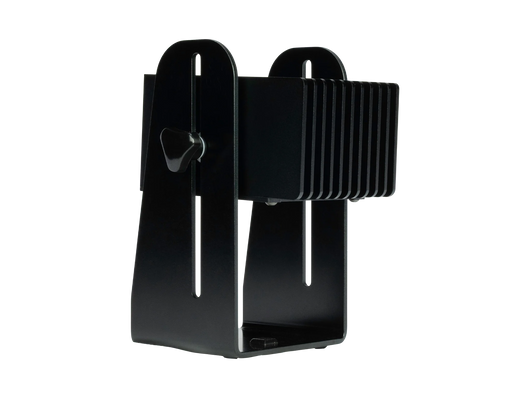

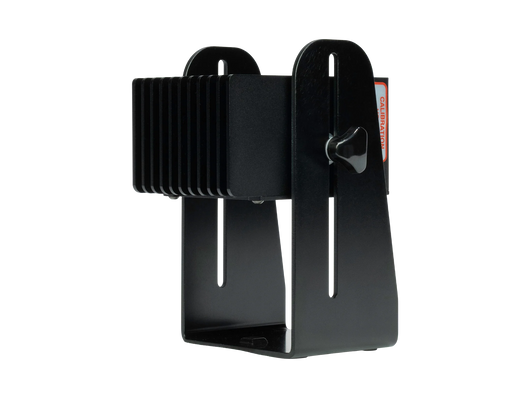

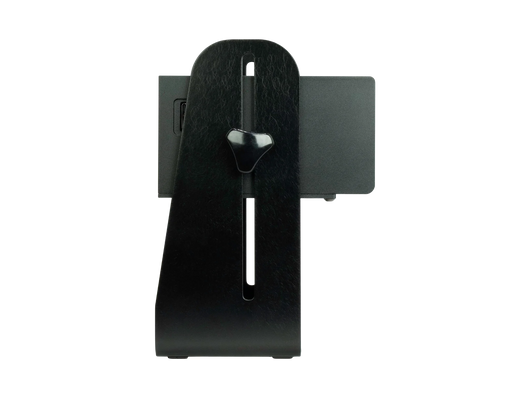

Beam Analyzer Measurement Device
  • Beam Analyzer Measurement Device
  • Beam Analyzer Measurement Device
  • Beam Analyzer Measurement Device
  • Beam Analyzer Measurement Device

Beam Analyzer Measurement Device

$2,907.00 Sale

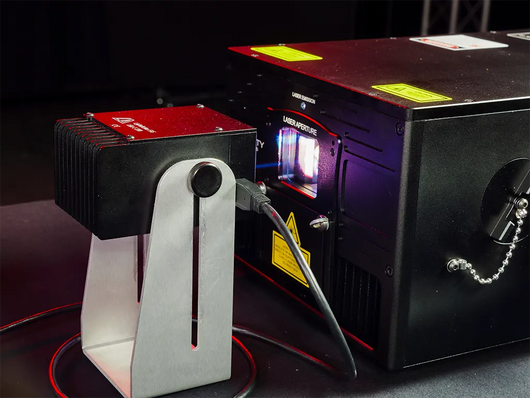

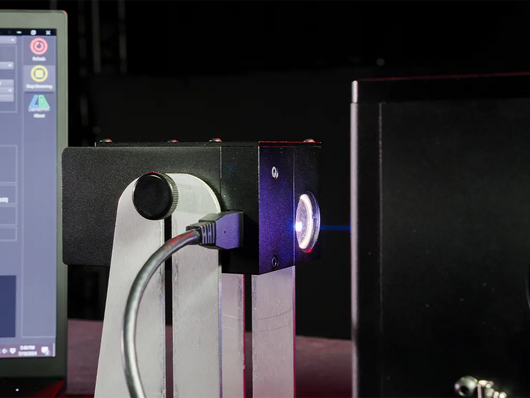

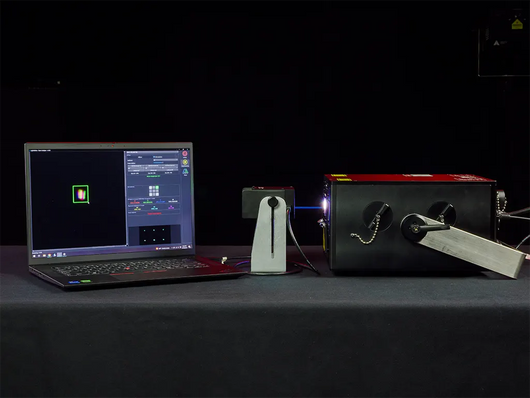

The Beam Analyzer is a compact measurement device that is designed to handle continuous high power laser beams, measuring the divergence and RGB alignment of the laser source with very high accuracy. The Beam Analyzer also includes a simple software that allows you to preform all the different measurements quickly and easily.

Product Overview

This device analyzes a laser beam to enable to measure the main specifications that qualify the quality of the beam. The angular measurement method used by the beam analyzer gives the advantage to not depend on the input beam diameter or on the distance between the measuring device and the laser source. The resolution on the measure is 0.01mrad.

The beam analyzer is well suited for the measurement of the following applications:

  • Divergence of the laser beam for each color and for all colors simultaneously.
  • Laser power measurement
  • Lens collimating of laser sources : minimal divergence
  • Alignment of RGB laser beams
Optical specifications
Parameter Symbol Min Typ Max Unit
Optical power (*)(**) Popt 0.1 - 100 W
Power measurement accuracy - 1 - %
Resolution on divergence RΦ - 0.01 - mrad
Divergence measured (FWHM) Φ 0.1 - 10 mrad
Input beam diameter D - - 22 mm
Wavelength detected λ 400 - 1000 nm
Mechanical specifications
Parameter Symbol Value Unit
Length x Width x Height (without the support / handle) L x W x H 100 x 75 x 57 mm
Weight msys 500 g
Electrical specifications
Parameter Symbol Value Unit
Typical consumption (USB 3.0) PUSB 2 W

(*) The sensor of the LBA-C must remain below 75°C while operating. It may be need to dissipate heat from the case with a fan when using the device with high power beams for a long period.

(**) A correct alignment should be done before setting the laser projector to maximum power. The user must follow the alignment procedure described in the User Manual to prevent damage to the system.

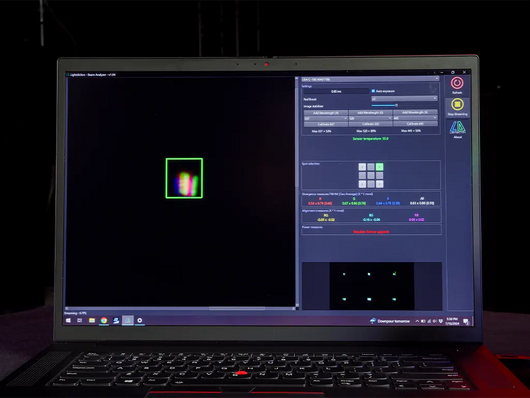

Software Specifications

  • Available on Windows 10 and 11
  • Updated regularly, following users requirements
  • Connection in USB 3.0
  • Multi-language (French, English)

Documents

Beam Analyzer Software

Download now

Manual & More

Download now
Qty

Minimum order quantity: 100 pieces
